Throttled Execution (Throughput-Limited, Asynchronous Workflow)¶
Scenario D illustrates a hybrid Quantum–HPC workflow with no global synchronization barrier, where ranks progress independently but overall throughput is limited by the serial service capacity of the QPU.
Unlike Scenario B, ranks do not wait for a collective quantum result.
Unlike Scenario C, transfer latency alone is not the dominant effect.
The defining feature here is rate mismatch: classical resources can generate quantum jobs faster than the backend can execute them. Throttling is introduced to keep this mismatch from producing unbounded queue growth.
This scenario corresponds to Bottleneck 3 (serial service capacity) in the accompanying article.
Purpose of This Scenario¶
Scenario D shows:
Why throughput limits matter even without synchronization
How throttling converts an unstable workload into a steady pipeline
How Idle, Blocked, and Working coexist in a controlled regime
It demonstrates that removing barriers does not remove bottlenecks — it merely changes their nature.
What characterizes this workflow¶
Scenario D follows an asynchronous pattern:
Ranks submit quantum jobs independently
Each rank waits only for its own quantum result
The QPU executes jobs serially (Run = 1)
A throttling policy limits how many jobs may be outstanding
A critical modeling detail:
Transfer spans three phases — off-load (HPC), in-flight, and on-load (QPU).
During off-load, a rank is Working; once off-load completes, the rank becomes Blocked while waiting for its result.
Bottleneck¶
The dominant bottleneck in this scenario is quantum service capacity.
Capacity wall
Progress is limited by how fast the QPU can complete jobs, not by synchronization or latency.
Throttling does not remove the bottleneck; it prevents it from destabilizing the system.
Assumptions and constraints¶
Algorithmic structure¶
No global dependency across ranks
Quantum results are consumed locally
Many independent quantum calls over time
Classical execution and throttling¶
Classical work is abundant and parallel
Submission is rate-limited by policy
Ranks may be Idle even when work exists, purely due to throttling
Quantum execution¶
Single-lane backend execution
Queue allowed but intentionally bounded
Frame-by-Frame Walkthrough¶
Frame 1 — All-classical baseline (1000 working)¶
All ranks are performing classical work (Working = 1000).
No quantum jobs are running or queued (Queue = 0, Run = 0).

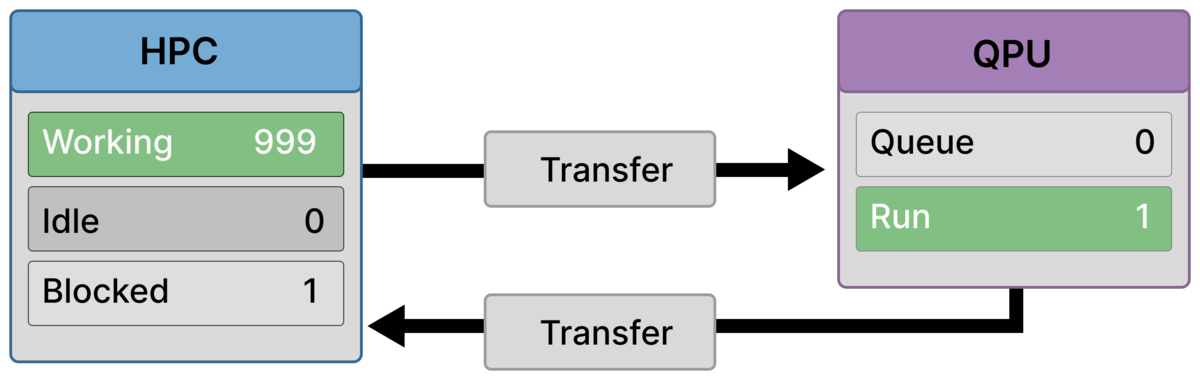

Frame 2 — First local stall (999 working / 1 blocked)¶
One rank reaches a dependency on its own quantum result and becomes Blocked = 1.
All other ranks continue working. The QPU begins execution (Run = 1).
Blocking is local, not global.
Frame 3 — Bounded backlog forms (950 working / 50 blocked)¶
A steady backlog emerges: Run = 1, Queue = 49.
A fixed cohort of ranks waits for results (Blocked = 50), while the remainder continue classical work (Working = 950).
This is the raw throughput limit made visible.

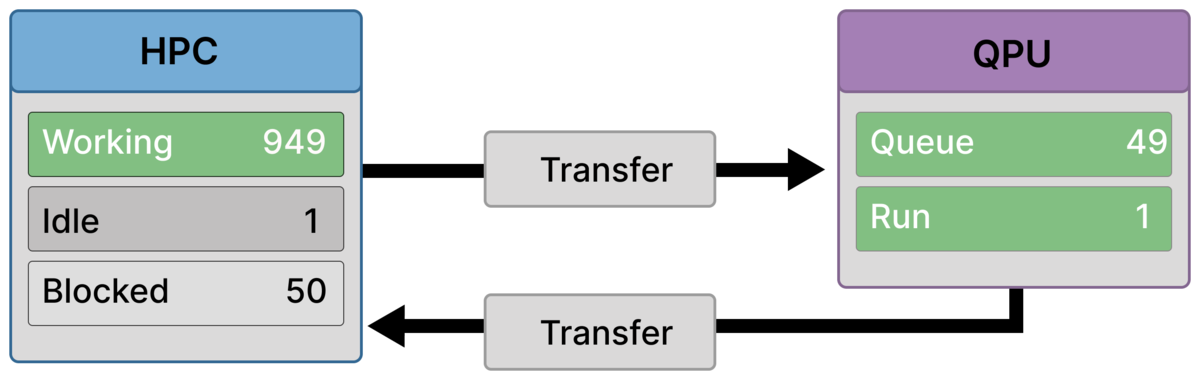

Frame 4 — Throttling activates (949 working / 1 idle / 50 blocked)¶
With the queue at its limit, throttling prevents further submissions.
One rank is now Idle = 1 by policy, while Blocked = 50 wait on results and Working = 949 continue classical work.
Idle here reflects admission control, not lack of work.

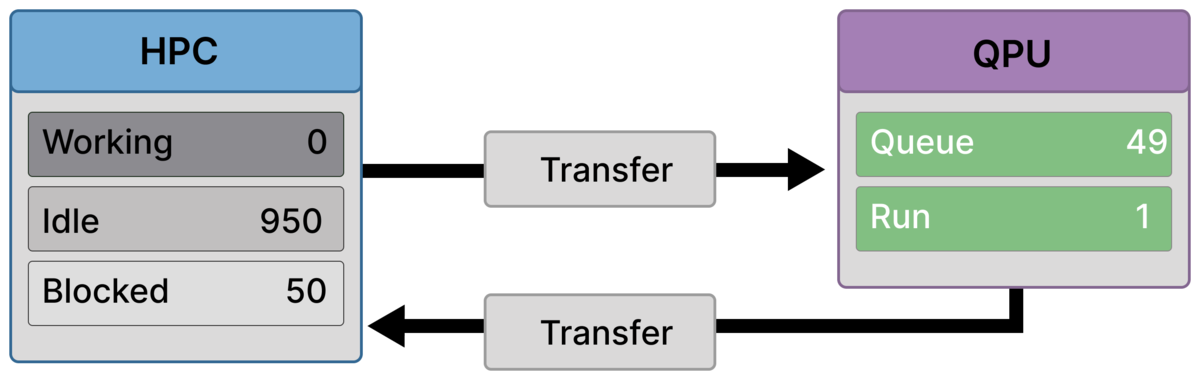

Frame 5 — Policy-held steady state (950 idle / 50 blocked)¶
Throttling fully dominates visible behavior: Idle = 950, Blocked = 50, Working = 0.
The backend continues draining the bounded backlog (Run = 1, Queue = 49).
This is a controlled pause, not a deadlock.

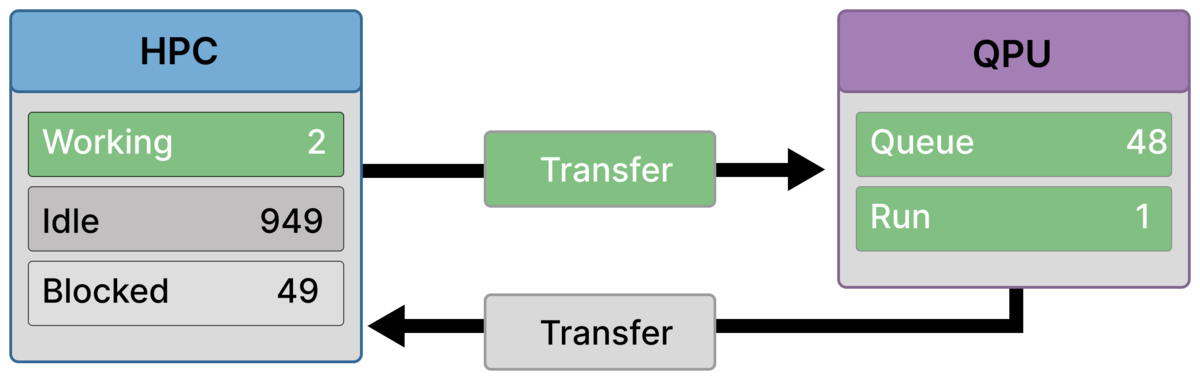

Frame 6 — Result returns, pipeline advances (2 working / 949 idle / 49 blocked)¶
One quantum job completes and its result returns.
The corresponding rank becomes unblocked and resumes classical work using the returned quantum result.
Because the queue shortens (Queue = 48), throttling immediately releases one idle rank, which begins off-loading the next quantum job (active Transfer).
This ranks is now also doing work (off-loading data) thus Working = 2.
This is the core pipeline step: completion frees capacity, which is immediately reused.

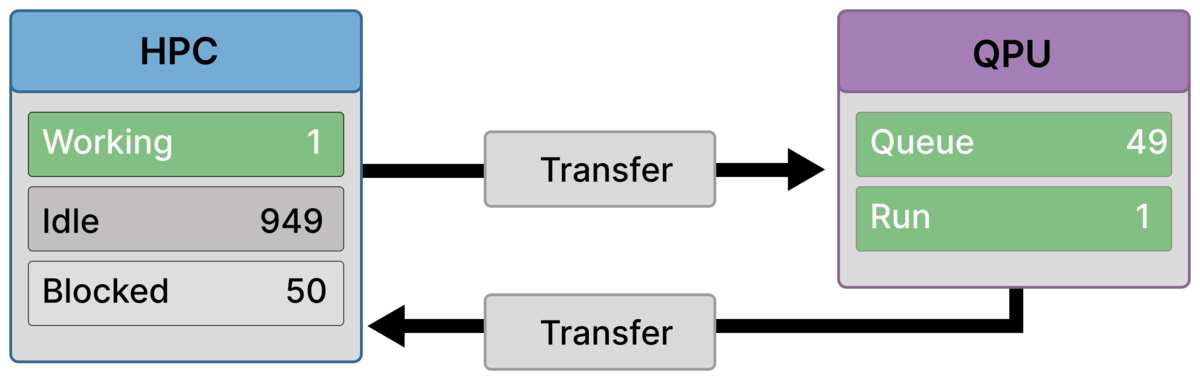

Frame 7 — Off-load completes, steady backlog restored (1 working / 949 idle / 50 blocked)¶
The submitting rank completes off-load.
It becomes Blocked, restoring the waiting cohort to Blocked = 50 and the queue to its steady size (Queue = 49, Run = 1).
The cycle repeats: each returned result advances the pipeline by exactly one job. One idle rank is allowed to submit reducing the idle count by one. This repeats until all classical results have been submitted and the idle count is reduced to zero
Frame 8 — Late in the drain (950 working / 50 blocked)¶
Most quantum results have now returned.
Previously idle ranks are actively working again (Working = 950), while a fixed cohort remains blocked (Blocked = 50) corresponding to the remaining bounded backlog.
The system is still throughput-limited, but classical utilization is largely restored.

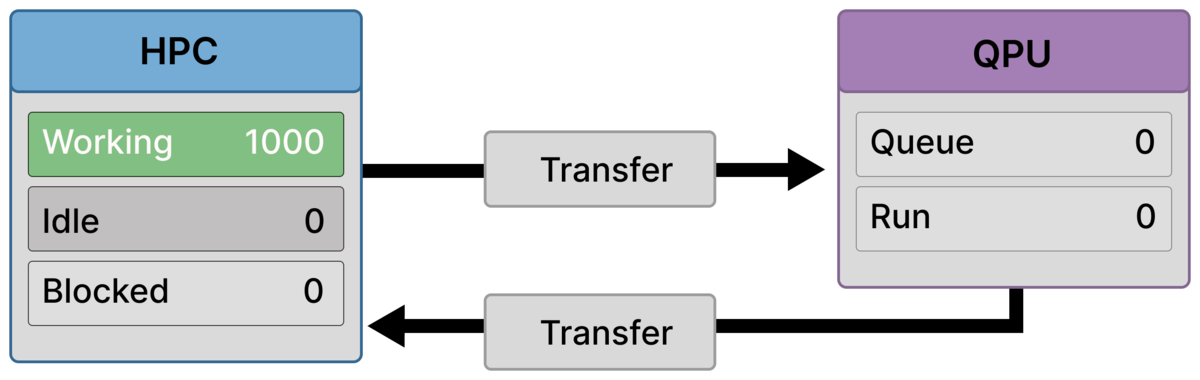

Frame 9 — Final result returns (1000 working)¶
The last outstanding quantum result returns.
All ranks resume classical work (Working = 1000), and the QPU becomes idle (Queue = 0, Run = 0).
The next cycle will reproduce the same capacity-limited dynamics once submissions resume.
Why throttling is essential¶
Without throttling:
the queue would grow without bound
memory pressure and control overhead would dominate
performance would degrade unpredictably
Throttling transforms a pathological workload into a stable, repeatable pipeline whose throughput is explicitly capped by backend capacity.
Where this scenario appears¶
Scenario D is representative of:
High-throughput hybrid workflows
Batched kernel evaluations
Asynchronous quantum subroutines
Any setting where quantum calls are independent but frequent
It reflects realistic execution on shared quantum backends with limited service rates.
Takeaway¶
Scenario D shows that asynchrony alone does not guarantee scalability.
When quantum execution is serial, overall progress is capped by backend throughput.
Throttling does not eliminate this bottleneck — it makes it visible, controllable, and survivable.
